T-Rex 125

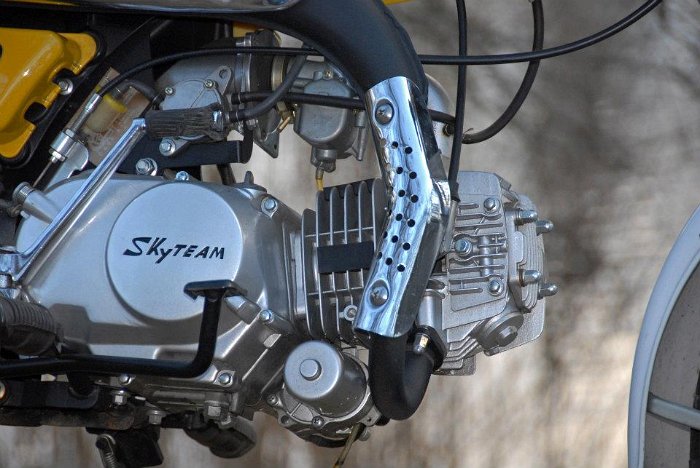

ENGINE
ENGINE TYPE Air-Cooled, 4 stroke, single cylinder, 2 valve, SOHC
DISPLACEMENT 124CC
BORESTROKE 52.4 x 57mm
COMPRESSION RATIO 9.0 TO 1
MAXIMUM POWER 5.0kW5500rpm
MAXIMUM TORQUE 7.3Nm6500rpm
MAXIMUM SPEED 82kmh
LUBRICATION SYSTEM Pressure and splash lubrication
CARBURETORFUEL SUPPLY MIKUNI 22 38419
CLUTCH TYPE Wet, multiple disc
IGNITION SYSTEM CDI
STARTER SYSTEM Electric & Kick
TRANSMISSION SYSTEM 4-gear, Pedal
FINAL TRANSMISSION Chain
FUAL TANK CAPACITY 4.5L
OIL TANK CAPACITY 800ml
CHASSIS
CHASSIS Steel, Single-tube
FRONT SUSPENSION SYSTEM Spring & Oil
FRONT TRAVEL 115mm
REAR SUSPENSION SYSTEM Spring & Oil Double Shock
REAR TRAVEL 50mm
FRONT BRAKE Disc 155mm
REAR BRAKE Drum
FRONT TYRE 21X7-10 (7.0-10)
REAR TYRE 21X7-10 (7.0-10)
DIMENSIONS
LENGTH 1725mm
WIDTH 825mm
HEIGHT 1020mm
SEAT HEIGHT 760mm
WHEEL BASE 1200mm
MINIMUM GROUND CLEARANCE 205mm
DRY WEIGHT 88KGS
PACKING DIMENSION 1600 x 450 x 860mm
